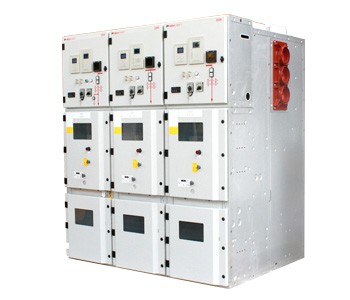

ZS8N Series
10kV Medium Voltage Switchgear (550)

Features
The ZS8N-i cabinet, boasting a slim design at just 550mm in width, is designed specifically for systems rated 1250A and below. It adopts a modular design, integrating high-standard technical components resulting in a lightweight and compact structure. This cabinet is user-friendly and can be equipped with intelligent primary components and perceptive sensors to support digital functionality.
Contact Us
  • Features
  • Parameter
  • Application field

  • Voltage level: 12kV

    Product features:

    1.With the integration of the SmartSwitch digital distribution system, it can be transformed into an intelligent medium voltage switchgear

    2.Compliance with the State Grid's standard customization requirements for cabinets

    3.Compact design, with the slimmest cabinet width measuring a mere 550mm

    4.Automatic switching of system operation status can be achieved by programmed control function





  • Technical parameters：

    Main technical parameters: rated voltage kV 12

    Rated lightning impulse withstand voltage kV 75

    Rated power frequency withstand voltage kV 42

    Rated short-time withstand current (4sec) kA 25, 315

    Rated peak withstand current kA 63, 80
    Internal arc withstand capability (1sec) kA 315
    Main busbar current A ~4000
    Branch busbar current A 630, 1250



  • Power grids, substations, industrial parks, transportation, real estate, environmental communication, municipal services, infrastructure, and public utilities.
