location：Intelligent Power Distribution Products > Medium Voltage Intelligent Switchgear

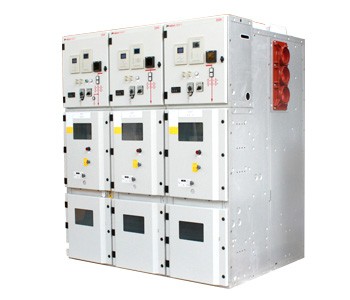

ZS8N Series
10kV Medium Voltage Switchgear (universal type)
Features
ZS8N-i Digital Switchgear is fortified with Minghan Electric's SmartSwitch system. Through the integration of sensor technology and information technology, it enables real-time monitoring and analysis, allowing for comprehensive awareness of the switchgear's status. Leveraging Minghan Electric's DigiPower energy management platform, the system provides full lifecycle management of the equipment and offers operational recommendations. This ensures power supply safety, enhances operational continuity and reliability, extends maintenance cycles, and reduces maintenance costs.
Contact Us- Features
- Parameter
- Application field
-
Voltage level: 12kV
Product features:：
1.With the integration of the SmartSwitch digital distribution system, it can be upgraded to an intelligent medium voltage switchgear
2.Compliance with the State Grid's standard customization requirements for cabinets
3.Compact design, with the slimmest cabinet width measuring a mere 550mm
4.Automatic switching of system operation status can be achieved by programmed control function
-
Test standard: Conforms to GB/IEC
Rated voltage kV 12 24 Insulation level kV 42/75 65/125 Rated main busbar current (40℃) A …4000 …3150 Rated branch busbar current (40℃) A …4000 …3150 Rated short circuit breaking current kA …50 …31.5 Arcing withstand current kA …50 …31.5 - Power grids, substations, industrial parks, transportation, real estate, environmental communication, municipal services, infrastructure, and public utilities.
