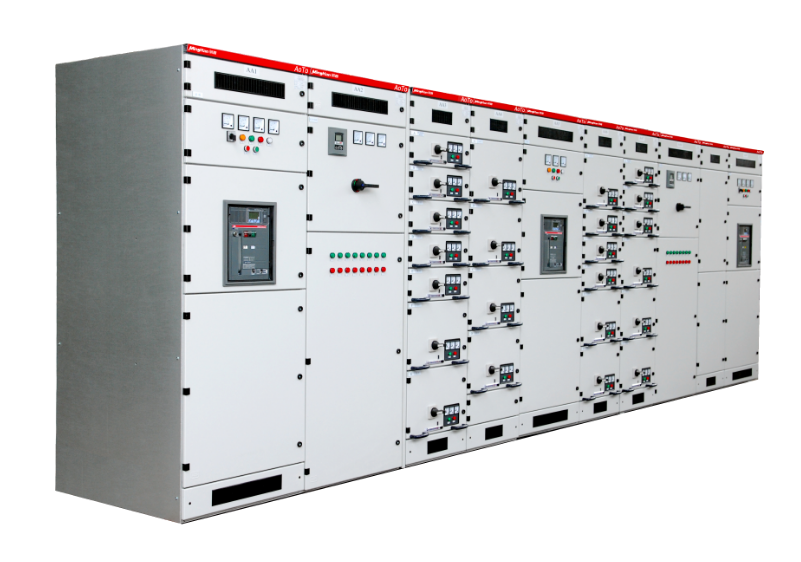

AOTO Series
Intelligent Low Voltage Switchgear

Features
The digital low-voltage switchgear is equipped with a distribution monitoring, control, and management system. This switchgear is primarily used in critical industrial, petrochemical, infrastructure, data center, and commercial systems, providing reliable motor control and power distribution functionality. When combined with Minghan's other equipment, it forms Minghan's low-voltage power distribution and control solution.
Contact Us
  • Features
  • Parameter
  • Application field

  • Voltage Level: 0.4kV-0.69kV

    Product features:

    1.Equipped with the SmartSwitch digital power distribution system, it can be upgraded to an intelligent low voltage switchgear AoTo-i which is best fit for smart grid.

    2.Available digital control screen, furnished with intelligent capabilities such as energy management and operation monitoring

    3.A rack-in-rack-out  , effort-saving type drawer operation mechanism that offers simple, convenient operation and reliable locking

    4.Both drawer-type and fixed partition-type are avaliable

    5.Furnished with Minghan's LAD series of intelligent instruments, offering digital display, comprehensive functions, and easy operation

    6.The max. rated current of horizontal bus bar  can reach up to 6300A


  • Compliance with: GB/IEC

    Rated working voltage: 400V, 690V

    Rated insulation voltage: 1000V

    Rated frequency: 50Hz, 60Hz

    Maximum rated current of the main bus bar: 6300A

    Maximum rated short-time withstand current of the main bus bar: 100KA (1s)

    Maximum rated peak withstand current of the main bus bar: 220KA

  • Commonly used in essential industries, petrochemicals, infrastructure, data centers, and commercial systems
